VCAP5-DCA: Passed

VCAP-DCA 125 x 125For those of you who have read my VCAP5-DCD: Passed post, you will have gotten an insight into what I do for a living which is pre-sales focusing on infrastructure design.  The process I used to pass the VCAP5-DCD isn’t one that I would recommend as I relied heavily on my day to day experience.

Wind forward to the VCAP5-DCA, administration of vSphere environments is something I simply don’t do.  Normally it’s design, maybe configure and install but never administrate.  To be fair I wasn’t even sure if I would attempt the exam as it would be a steep learning curve.

Why VCAP5-DCA?

So why did I put myself through the ordeal of studying for the VCAP5-DCA? Well this had a lot to do with a colleague of mine Steve Wenban @stevewenban79.  When I joined SCC, Steve had already passed his VCAP5-DCA and VCAP5-DCD and wanted a second pair of eyes to check his design, implementation guide and operational procedures.  He had heard via the ‘jungle drums’ that I knew my ‘vSphere onions’ and got in touch.

Firstly, I was honored that he felt I was capable of reviewing his documents, however I wasn’t sure what value I would bring to his design as at this point I was only a VCP (not knocking this achievement).  My designs had been successful but I hadn’t had the opportunity for peer validation in my previous role.

Reviewing Steve’s VCDX documents, it was clear he really knew vSphere inside and out, but it also dawned on me that I knew a lot more than I first realized.  Steve and I went over his VCDX document’s and he mentioned that I should start the journey towards the elite certification.

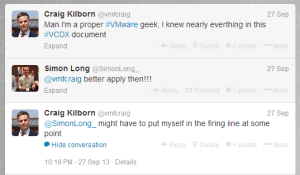

During this time, I made a tweet about knowing nearly everything in the VCDX document.  Bold, I know! This lead to Simon Long @SimonLong_ and Tim Antonowicz @timantz who are both VCDX calling me out.

Twitter 2

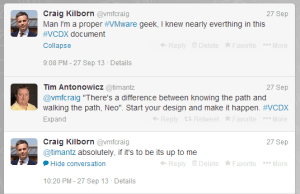

Tim

With the right timing, certain tweets resonate and the ones from Simon and Tim did that.  It was an ‘ah ha’ or ‘light bulb’ moment, so thanks for that chaps.

After passing the VCAP5-DCD I started the slog towards VCAP5-DCA, I knew it was going to be an up hill struggle.  In the same way that someone who administrates a vSphere environment would find the VCAP5-DCD harder.

Studying

I will be the first to admit that I have a family with two young children and a demanding job, so motivating myself to study is difficult as especially when you might want to study your children don’t quite agree!

How do I do it? Well I use my time wisely, for example whilst travelling in the car or on a train I will be listening to Jason Nash’s @TheJasonNash excellent VMware vSphere Optimise & Scale course.  I would then repeat the material in the evening when I had access to my lab.  Having access to a home lab is crucial, you need to be able to practice every piece of the VCAP5-DCA blueprint.

I didn’t really have an exact study plan, it was more a methodology.  For me it’s consistency and discipline, plugging away day in, day out to get through the blueprint.  Obviously something has to give and for me it’s my exercise regime.

VCAP5-DCA Blueprint

This is the keys to the kingdom, you need to follow this closely.  It is great that the VMware vSphere Optimize & Scale course that Jason Nash provides follows the blueprint closely.  This coupled with the fact that he gives some great tips on what he feels can and can’t be included in the exam. After the first run of the VMware vSphere Optimize & Scale course, I would go over the areas I felt I was weakest on.

Next was the excellent ‘Unofficial Official  VCAP5-DCA Study Guide‘ by Josh Coen @joshcoen and Jason Langer @jaslanger.  A quick read over this and a practice of the CLI commands and I was ready for the final preparation.

Mock Exam

I set myself a mock exam each night for five days leading up to the exam.  This mock exam was for me to work on the areas that I weakest (PowerCLI and ESXCLI) until I had them more or less down to a ‘t’.  An example mock exam is at the end of this blog post (with answers).

Actual Exam

I knew the exam was going to be brutal, from a time and concentration perspective.  Plus I don’t function to well if I’m tired or hungry.  So I tried to get a decent nights sleep on Wednesday, about six hours in total.

I had a two hour drive to the exam, during this time, I didn’t listen to anything VMware related, I was of the opinion either I know it or I don’t.

Fifteen minutes before going into the exam, I did the following:

  • Ate 2 x Natural Eating Bars, for a bit of a sugar rush but also to try and keep hunger at bay.
  • Had 2 x Ibuprofen.  I didn’t have  a headache, but knew I was going to be exerting myself mentally and wanted to make sure I was on top form for the four hours duration.

Much like the VCAP5-DCD, time is your enemy, you have 26 questions to complete in 3.5 hours (if English is your first language).  I had a game plan when I went into the exam, which was to follow Tim Antonowicz VCAP5-DCA Whiteboard Strategy & Tips.  In reality I saw the first question and thought I can do this and my game plan erm, didn’t happen!

What I did stick to was using the vSphere Client on the first window, and then only using the vCenter Desktop when I needed to for a task.  Looking back this was a important as it saved a fair bit of time.

The first thirteen questions I sailed over, not saying I completed every one, I just moved on if there was a small part I didn’t know the answer to.   These are typically items I would look up from a PDF and I don’t like committing them to brain just for the sake of an exam. Then after  the first thirteen questions I started to experience the typical VCAP5-DCA lab issues, MAJOR LATENCY!  Frustrating to say the least, it really throws you a curve ball as you can’t remember where you have clicked.  I found myself getting irritated which resulted in not focusing on the task at hand, wasting time.

I tried going forward onto another task to kick this off, but found that this didn’t help either, especially as some of the remaining tasks involved PowerCLI which actually took five minutes to open!

Final Thoughts

Overall, I didn’t answer three questions, even though I could have answered them with help from a PDF, I knew my time was better spent on the ones I could answer.  Another four questions I didn’t fully complete, again because I would have to refer to the PDF and knowing how slowly the exam was responding this wasn’t worth the effort.

When I clicked submit, I reflected thinking if I was an actual vSphere Administrator would this reflect my day to day job and my answer was yes.  However, I think that a weeks worth of work is condensed down to 3.5 hours for the exam!

I’m pleased to say that  I received the exam results within a eight days of sitting the exam.  It was the last day of HP Discover and I was sitting down at dinner with seventeen other people including Philip Sellers @pbsellers, Chris Wahl @chriswahl, Alastair Cooke @DemitasseNZ and Calvin Zito @HPStorageGuy when I received the results.  To say I was happy was an understatement!

Mock Exam Examples

These are the mock exam questions that I practiced.  Naturally, I’m not able to say if they where in the exam.  What I suggest you do is make yourself a practice test the areas you are weakest on.

1. Change Default IOP Limit To 100

esxcli storage nmp device listnaa.6000eb34d2a20c040000000000000365
Device Display Name: VCAP_LUN
Storage Array Type: VMW_SATP_DEFAULT_AA
Storage Array Type Device Config: SATP VMW_SATP_DEFAULT_AA does not support device configuration.
Path Selection Policy: VMW_PSP_RR
Path Selection Policy Device Config: {policy=rr,iops=1000,bytes=10485760,useANO=0;lastPathIndex=2: NumIOsPending=0,numBytesPending=0}
Path Selection Policy Device Custom Config:
Working Paths: vmhba38:C2:T2:L0, vmhba38:C1:T2:L0, vmhba38:C0:T2:L0esxcli storage nmp psp roundrobin deviceconfig set -d naa.6000eb34d2a20c040000000000000365 -t iops -I 100

2. Claim Rules To remove Storage From Host

esxcli storage core claimrule add -r 901 -t location -A vmhba38 -C 2 -T 2 -L 0 -P MASK_PATH

esxcli storage core claimrule add -r 902 -t location -A vmhba38 -C 1 -T 2 -L 0 -P MASK_PATH

esxcli storage core claimrule add -r 903 -t location -A vmhba38 -C 0 -T 2 -L 0 -P MASK_PATHesxcli storage core claimrule list

Rule Class   Rule  Class    Type       Plugin     Matches
———-  —–  ——-  ———  ———  —————————————-
MP              0  runtime  transport  NMP        transport=usb
MP              1  runtime  transport  NMP        transport=sata
MP              2  runtime  transport  NMP        transport=ide
MP              3  runtime  transport  NMP        transport=block
MP              4  runtime  transport  NMP        transport=unknown
MP            101  runtime  vendor     MASK_PATH  vendor=DELL model=Universal Xport
MP            101  file     vendor     MASK_PATH  vendor=DELL model=Universal Xport
MP            901  file     location   MASK_PATH  adapter=vmhba38 channel=2 target=2 lun=0
MP            902  file     location   MASK_PATH  adapter=vmhba38 channel=1 target=2 lun=0
MP            903  file     location   MASK_PATH  adapter=vmhba38 channel=0 target=2 lun=0
MP          65535  runtime  vendor     NMP        vendor=* model=*esxcli storage core claimrule run

esxcli storage core claimrule load

3. Remove Claim Rules

esxcli storage core claiming unclaim -t location -A vmhba38 -C 0 -T 2 -L 0 -P MASK_PATH

esxcli storage core claiming unclaim -t location -A vmhba38 -C 1 -T 2 -L 0 -P MASK_PATH
esxcli storage core claiming unclaim -t location -A vmhba38 -C 2 -T 2 -L 0 -P MASK_PATH

esxcli storage core claimrule remove -r 901
esxcli storage core claimrule remove -r 902
esxcli storage core claimrule remove -r 903

esxcli storage core claimrule list

Rule Class   Rule  Class    Type       Plugin     Matches
———-  —–  ——-  ———  ———  —————————————-
MP              0  runtime  transport  NMP        transport=usb
MP              1  runtime  transport  NMP        transport=sata
MP              2  runtime  transport  NMP        transport=ide
MP              3  runtime  transport  NMP        transport=block
MP              4  runtime  transport  NMP        transport=unknown
MP            101  runtime  vendor     MASK_PATH  vendor=DELL model=Universal Xport
MP            101  file     vendor     MASK_PATH  vendor=DELL model=Universal Xport
MP            901  runtime  location   MASK_PATH  adapter=vmhba38 channel=2 target=2 lun=0
MP            902  runtime  location   MASK_PATH  adapter=vmhba38 channel=1 target=2 lun=0
MP            903  runtime  location   MASK_PATH  adapter=vmhba38 channel=0 target=2 lun=0
MP          65535  runtime  vendor     NMP        vendor=* model=*
esxcli storage core claimrule load
esxcli storage core claimrule run
esxcli storage core claimrule list

Rule Class   Rule  Class    Type       Plugin     Matches
———-  —–  ——-  ———  ———  ———————————
MP              0  runtime  transport  NMP        transport=usb
MP              1  runtime  transport  NMP        transport=sata
MP              2  runtime  transport  NMP        transport=ide
MP              3  runtime  transport  NMP        transport=block
MP              4  runtime  transport  NMP        transport=unknown
MP            101  runtime  vendor     MASK_PATH  vendor=DELL model=Universal Xport
MP            101  file     vendor     MASK_PATH  vendor=DELL model=Universal Xport
MP          65535  runtime  vendor     NMP        vendor=* model=*

4. Add SATP

esxcli storage core plugin registration add -m VCAP_DCA -P VCAP_DCA -N SATP

5. Change Default SATP PSP

esxcli storage nmp satp set -s VMW_SATP_DEFAULT_AA -P VMW_PSP_RR

6. Enable SSD

esxcli storage core device listnaa.6000eb34d2a20c040000000000000365

Display Name: VCAP_LUN
Has Settable Display Name: true
Size: 10240
Device Type: Direct-Access
Multipath Plugin: NMP
Devfs Path: /vmfs/devices/disks/naa.6000eb34d2a20c040000000000000365
Vendor: LEFTHAND
Model: iSCSIDisk
Revision: a500
SCSI Level: 5
Is Pseudo: false
Status: on
Is RDM Capable: true
Is Local: false
Is Removable: false
Is SSD: false
Is Offline: false
Is Perennially Reserved: false
Thin Provisioning Status: unknown
Attached Filters: VAAI_FILTER
VAAI Status: supported
Other UIDs: vml.02000000006000eb34d2a20c040000000000000365695343534944

esxcli storage nmp satp rule add -d naa.6000eb34d2a20c040000000000000365 -s VMW_SATP_DEFAULT_AA -o enable_ssd

esxcli storage core claiming reclaim -d naa.6000eb34d2a20c040000000000000365

7. Remove SSD

esxcli storage nmp satp rule remove -d naa.6000eb34d2a20c040000000000000365 -s VMW_SATP_DEFAULT_AA -o disable_ssd

esxcli storage core claiming reclaim -d naa.6000eb34d2a20c040000000000000365

8. Enable Syslog

esxcli system syslog config set –loghost 10.3.2.203:514

esxcli system syslog reload

9. Add Firewall Rule

esxcli network firewall ruleset set -r syslog -e true

esxcli network firewall refresh

10. ESXTOP Output CSV File

esxtop -b -a -n 10 > \vmfs/volumes/ESXi02_RAID1_L01_SAS/esxtop.csv

11. Log locations Host & vCenter

var/log

12. Create New Custom Image

Connect VI-Server

PowerCLI C:\> Add-EsxSoftwareDepotAdd-EsxSoftwareDepot

Supply values for the following parameters:
DepotUrl[0]: C:\SoftwareDepot\update-from-esxi5.0-5.0_update03.zip
DepotUrl[1]: C:\SoftwareDepot\BCD-bna-3.2.3.0-00000-offline_bundle-1326881.zip
DepotUrl[2]: http://VMF-VC01/vSphere-HA-depot
DepotUrl[3]:Depot Url
———
zip:C:\SoftwareDepot\update-from-esxi5.0-5.0_update03.zip?index.xml
zip:C:\SoftwareDepot\BCD-bna-3.2.3.0-00000-offline_bundle-1326881.zip?index.xml
http://vmf-vc01/vSphere-HA-depot/index.xml

Get-EsxImageProfile | Select NameName

—-

ESXi-5.0.0-20131002001-standard

ESXi-5.0.0-20131001001s-standard
ESXi-5.0.0-20131001001s-no-tools
ESXi-5.0.0-20131002001-no-tools

New-EsxImageProfile -CloneProfile ESXi-5.0.0-20131002001-standard -Name ESXi5U3 -Vendor VMFocusN

Name                           Vendor          Last Modified   Acceptance Level

—-                           ——          ————-   —————-
ESXi5U3                        VMFocus         06/09/2013 0… PartnerSupported

Get-EsxSoftwarePackage

net-bna

vmware-fdm

Add-EsxSoftwarePackageImageProfile: ESXi5U3

SoftwarePackage[0]: net-bna
SoftwarePackage[1]: vmware-fdm
SoftwarePackage[2]:Name                           Vendor          Last Modified   Acceptance Level
—-                           ——          ————-   —————-
ESXi5U3                        VMFocus         04/12/2013 2… PartnerSupported

Export-EsxImageProfile -ImageProfile ESXi5U3 -FilePath C:\SoftwareDepot\ESXi5U3.zip -ExportToBundle

13. Create New Autodeploy Image

New-DeployRule -Name Image_Profile -Item ESXi5U3 -Pattern “ipv4=10.3.2.1-10.3.2.254”

Add-DeployRule Image_Profile

New-DeployRule -Name Cluster_Profile -Item AutoDeploy01 -Pattern “ipv4=10.3.2.1-10.3.2.254”

Add-DeployRule Cluster_Profile

New-DeployRule -Name Host_Profile -Item Host_Profile -Pattern “ipv4=10.3.2.1-10.3.2.254”

Add-DeployRule Host_Profile

14. ESXi Host Update

esxcli software vib update -d vmfs/volumes/ESXi02_RAID1_L01_SAS/ESXi5U3.zip

15. Add Server to VMA

vifp addserver AD-ESXi01 –authpolicy fpauth –username root –password Narlicwes0

16. Target AD-ESXi02

vifptarget -s AD-ESXi02

VCAP5-DCD: Passed

vcap5-dcdBackground

Before I go into the VCAP5-DCD, it’s important for me to give you some background about what I do.  Over the past two and a bit years I have been working in pre sales designing infrastructure solutions based on vSphere.  Now the good news is that I was responsible for the whole piece, storage, networking, vSphere and applications.  The company I worked for was mainly focused on SMB’s with the number of ESXi Hosts ranging from two to sixteen, with them always being in a single cluster.  The downside was I was the only vSphere person, so I never really knew if what I was doing right as I had no one to bounce ideas with.

We had a great technical team, but we didn’t really have a ‘official design methodology’.  However we had without knowing it been following some of the principles of VMware design, albeit unknowingly.

Step forward to the last two months, when I joined my current employer.  These guys have a design methodology which fits exactly to the VMware design methodology.  I had been involved in a couple of projects and had completed various documents after engaging with clients using Requirements, Assumptions, Risks and Constraints.  It was and still is a steep learning curve from a process perspective, technically, I think I’m OK.

The great thing is, they have a number of vSphere people, who are always willing to spend five minutes with you to ‘chew the fat’ and go over a design or validate a document.

Chain of Events

One of my colleagues is defending the VCDX at Barcelona (hope he nails it) and asked me to review his design and documentation.  Having spent a number of nights reading and reviewing this, I thought maybe I could do this.  When we sat down and discussed his design, he stated I should do the VCAP5-DCD, which strangely enough gave me the confidence to think about it.

I hadn’t really given much thought to doing the VCAP5-DCD before this point, apart from it was something I knew I wanted to do, however a chain of events then started which seemed to align perfectly.

Event 1 – Gregg Robertson @GreggRobertson5 twitted a VCAP exam voucher for 70% off any VCAP Exam

Event 2 – I had a meeting on Wednesday morning, which my colleague was unable to attend, which meant I had Wednesday afternoon free and also Thursday morning which was left for action points.  With this free time and discount voucher, I thought why not give the VCAP5-DCD a whirl!

Event 3 – I was in Bracknell on Thursday in the afternoon, and I happened to check Pearson Vue website, who have a testing centre and spaces for VCAP5-DCD.  The stars had aligned, the exam was booked.

Preparation

On Wednesday I purchased Paul McSharry @pmcsharry VMware Press Official Guide VCAP5-DCD and read this back to back and did all the tests.  I also downloaded the VCAP5-DCD Study Pack which was put together by Steven Dunne @steveied_82.  I had actually downloaded this earlier on in the week, but when I looked at it I thought, crikey there is so much to read!

Out of all the information in this pack, I read the VCAP5-DCD Study Outline by Jason Langer @jaslanger and read up (quickly as it was late) any areas I needed to polish up on.

I also read a number of blog sites about the VCAP5-DCD exam experience.

The Exam

I knew the exam was going to be brutal, from a time and concentration perspective.  Plus I don’t function to well if I’m tired or hungry.  So I tried to get a decent nights sleep on Wednesday, about six hours in total.

I had a two hour drive to the exam, during this time, I didn’t listen to anything VMware related, I was of the opinion either I know it or I don’t.

Fifteen minutes before going into the exam, I did the following:

  • Ate 2 x Natural Eating Bars, for a bit of a sugar rush but also to try and keep hunger at bay.
  • Had 2 x Ibuprofen.  I didn’t have  a headache, but knew I was going to be exerting myself mentally and wanted to make sure I was on top form for the four hours duration.

My exam had 100 questions with 6 designs and 94 questions.  I made a note at the top of my plastic sheet with 6 designs and as I covered one, I made a note so that I knew how many where left as time management was key.

How I tackled the questions was a bit different.  I started reading at the paragraph above the answers, this was key as this stated what you needed to do.  On nearly every question you have the ‘background gumph’ and loads of information, however not all of this is needed, so going to the paragraph above the answers told you what information you really needed to extract to be able to answer.

I finished the exam with about 30 seconds to spare, and was really under pressure on the last five questions.  To be fair, I was fatigued and mentally broken when I clicked End Exam and in fact I put my hands in my head and closed my eyes.  What seemed like a long time, but was probably only a few seconds I opened y eyes and saw the words ‘Congratulation you have passed the VCAP5-DCD’.  My score wasn’t the best 328, but I’m happy that I passed.

CCNA: Security at Commsupport

I nearly forgot that my CCNA was due to expire, but Cisco sent me a few reminders, well I say a few, it ended up bordering on spam.  This meant that my efforts to gain the CCENT and the CCNA would soon be in demise and I would enter the realms of a ‘retired Cisco Certified Network Associate’.

With this in mind, I had a few choices to make:

Do Nothing this was close to being a front runner, however, if I’m being honest with myself, not being a Cisco Certified really bothered me.  It was almost like riding your bike everyday and then one day your dad saying ‘you aren’t allowed on the bike anymore’.  This thought process made we not want to loose the ‘bike’ in the first place.

Stay The Same to be fair this never really entered the equation.  Since starting in IT, one thing that I have always enjoyed is moving forward with skills, projects, vendors and technologies.  I don’t ever want to be a person who says I have 15 years experience in IT, well in fact, what you really meant to say is I gave up learning 12 years ago, so I only really have 3 years experience.

Move Forward this was the front runner, but I didn’t have enough time to self study as I had done before with the CCENT and CCNA (see blog posts CCENT Study Guide and CCNA ICND2 Study Guide) due to family and work commitments.

I spend some time over on CertForums and met a friendly fellow called Cisco Lab Rat who is the Owner/Senior Instructor at Commsupport.  His forum posts impressed me and when my employer was looking for for a new Cisco training provider, I recommended Commsupport’s services.

A few of my colleagues have used Commsupport, and the feedback has always been top notch.  So with this in mind, I decided to head to Commupport for my CCNA: Security training.  I knew that it was going to be a tough week as Joe AKA Cisco Lab Rat performs the course over six days with the average day being 9:00am to 6:00pm.

One thing of note, is that I would highly recommend that you have either the CCNA or have configured Cisco ASA’s and Routers out in the field.  During my time as an engineer I have been lucky enough to configure oodles of ASA 5510 in high availability and more site to site VPN’s than I could shake a stick at.

Anyway, back to the course, before it starts Commsupport provide you with access to there e-learning portal and they ask that you brush up on the basics so you are fully prepared for the course.

The course is held in Central Finchley (London) and this meant a two and half hour trek, door to door.  The first day was a Sunday which I have to say isn’t generally the trend in IT courses, but it was welcomed as I knew we had a lot of information to cram in.

The Commsupport offices are OK, they aren’t the Ritz but they certainly aren’t the ghetto.  You have to bear in mind the course cost, along with the equipment being used and the technical expertise giving the training.

Upon arrival, I was greeted by a slightly over excited Joe!  He instantly made me feel welcome and offered me a seat in front of a stack of Cisco equipment.

I was surprised by the amount of equipment we had to use:

3 x Cisco 1841 Routers
1 x Cisco 2801 Router
1 x Cisco 3560
2 x Cisco 3550
1 x Cisco ASA 5510
2 x Laptops

Normally, in most courses I attend, you have the initial meet and great, with the ‘Hi I work for x and do y’.  None of this, we cracked straight on with Cisco.

The way that Joe teaches you is excellent, he has a passion for networking, Cisco and ranting about random topics.  The overall work flow for each day is really structured, essentially, you have.

Step 1 – Joe Talks

Joe talks over the days plan giving us an overview of what we are going to achieve e.g. Client less SSL VPN from ASA over two routers with two lots of NAT.

He then draws out the network diagram and talks over the concepts of each area e.g. why you would use an SSL VPN rather than L2TP IPSEC or PPTP.

Step 2 – Joe Does The Lab

This part is cool, Joe then puts together the lab and explains all the IOS commands, ensuring you understanding what he is doing and why.

Step 3 – You Do It

Joe prints you out a set of instructions to configure your lab, this includes parts from the GUI (if you like that sort of thing) and also CLI.  One of the aspects that I really enjoyed was when you couldn’t get something to work Joe would spend the time and help you troubleshoot the issue.

Conclusion

Overall it was an excellent week, I gained a much deeper understanding of what it actually was that I was configuring rather than just making it work.  Joe’s ability to convey very technical information in a humorous fashion is second to none.  The lab you have to use is fantastic and the ability to access Joe before and after the course really helps when you have questions you are unsure off.

Would I recommend the CCNA: Security at Commsupport, yes definately.

Topics Covered

Common Security Threats

Describe common security threats

Security and Cisco Routers

Implement security on Cisco router
Describe securing the control, data, and management plan
Describe Cisco Security Manager
Describe IPv4 to IPv6 transition

AAA on Cisco Devices

Implement AAA (authentication, authorization, and accounting
Describe TACACS+
Describe RADIUS
Describe AAA
Verify AAA functionality

IOS ACLs

Describe standard, extended, and named IP IOS access control lists (ACLs) to filter packets
Describe considerations when building ACLs
Implement IP ACLs to mitigate threats in a network

Secure Network Management and Reporting

Describe secure network management
Implement secure network management

Common Layer 2 Attacks

Describe Layer 2 security using Cisco switches
Describe VLAN security
Implement VLANs and trunking
Implement spanning tree

Cisco Firewall Technologies

Describe operational strengths and weaknesses of the different firewall technologies
Describe stateful firewalls
Describe the types of NAT used in firewall technologies
Implement zone-based policy firewall using CCP
Implement the Cisco Adaptive Security Appliance (ASA)
Implement Network Address Translation (NAT) and Port Address Translation (PAT)

VPN Technologies

Describe the different methods used in cryptography
Describe VPN technologies
Describe the building blocks of IPSec
Implement an IOS IPSec site-to-site VPN with pre-shared key authentication
Verify VPN operations
Implement Secure Sockets Layer (SSL) VPN using ASA device manager
