Failing Over To Azure Site Recovery

We are ready to failover our on-premises vSphere virtual machines to Azure.  Before we do it’s important to verify that our Configuration Server and Master Target Server are functioning correctly.

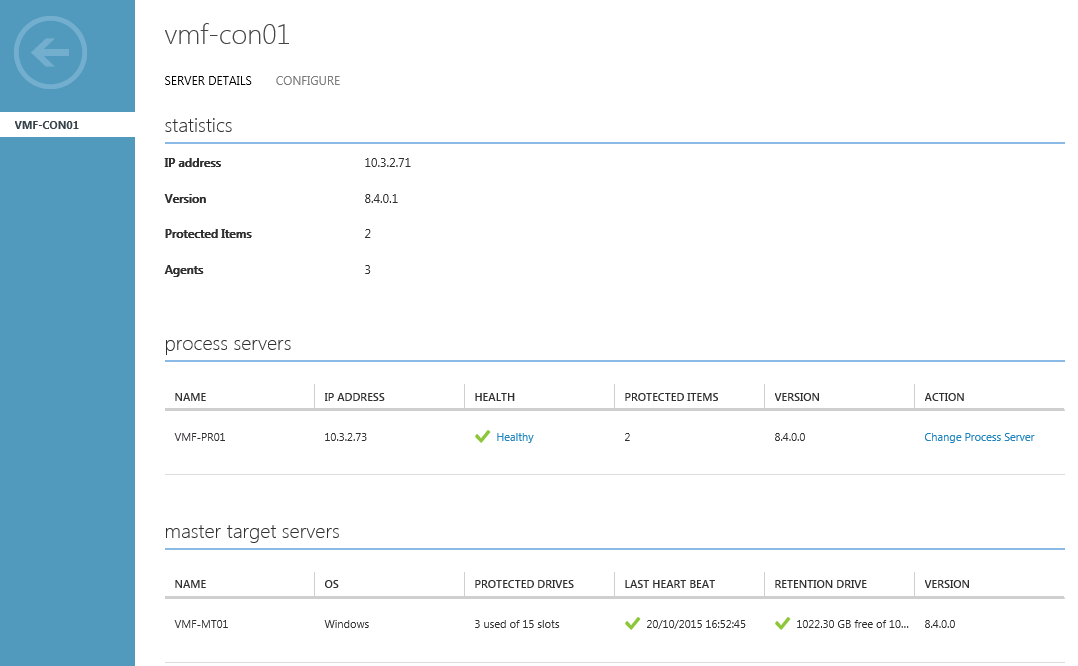

In the Azure Portal, select Recovery Services > VMFocusVault > Servers > Configuration Servers > Select Configuration Server.  Verify that displayed details are healthy.

Azure 46

Before we proceed any further, it’s worthwhile noting that Azure Site Recovery is in it’s infancy from an on-premises vSphere to Azure perspective.  Therefore it’s worthwhile noting that:

  • Only unplanned failover is supported
  • If you want your data to be consistent, shutdown your protected VM’s on-premises and wait for the next replication interval to complete

We need to create a Recovery Plan (which I would expect you to have in place already).  The purpose of a Recovery Plan is to group together virtual machines which should failover together.

  • Virtual Machines across different Protection Groups can be in the same Recovery Plan.  The use case for this is perhaps you have a three tier application where VM1 RPO is daily, VM2 PPO is 4 Hourly and VM3 is Hourly.
  • Once in a Recovery Plan, virtual machine start up order can be determined
  • Before a virtual machine is started a manual action can be inserted e.g. prompt to verify that a service has been checked before moving onto the next step
  • Before or after a virtual machines is started a script can be triggered

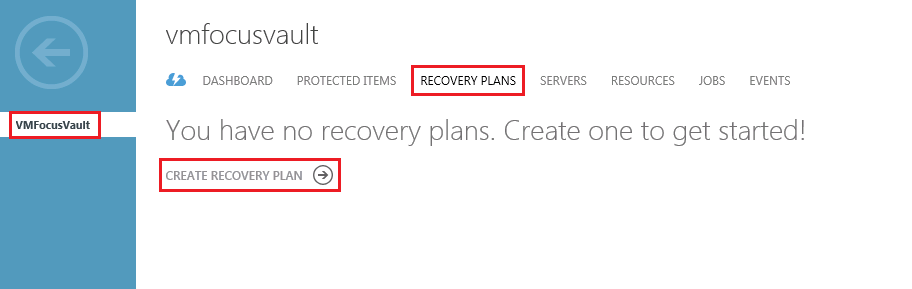

To create a Recovery Plan select Recovery Services > VMFocusVault > Recovery Plans > Create Recovery Plan

Azure 47

I’m going to create a single Recovery Plans called VMF-RP01:

  • Virtual machine VMF-AZ01 needs to maintain it’s current IP address, as if I had stretched my on-premises layer 2 network into Azure
  • Virtual machine VMF-AZ02 need a new IP address and therefore will be RE-IP’d as part of this process
  • VMF-AZ01 needs to start before VMF-AZ02

The screenshot below confirms the name of the Recovery Plan I have created called VMF-RP01.

Azure 48

As described the Protected Entities are VMF-AZ01 and VMF-AZ02.

Azure 49

Once the Recovery Plan is created.   Select the it by clicking on it’s name (in my case VMF-RP01) and you will see the following screen.

Azure 50

By default all VM’s will be started and stopped at the same time. To change this select the Group+ icon and you will see a Group 2 has been created.

Azure 51

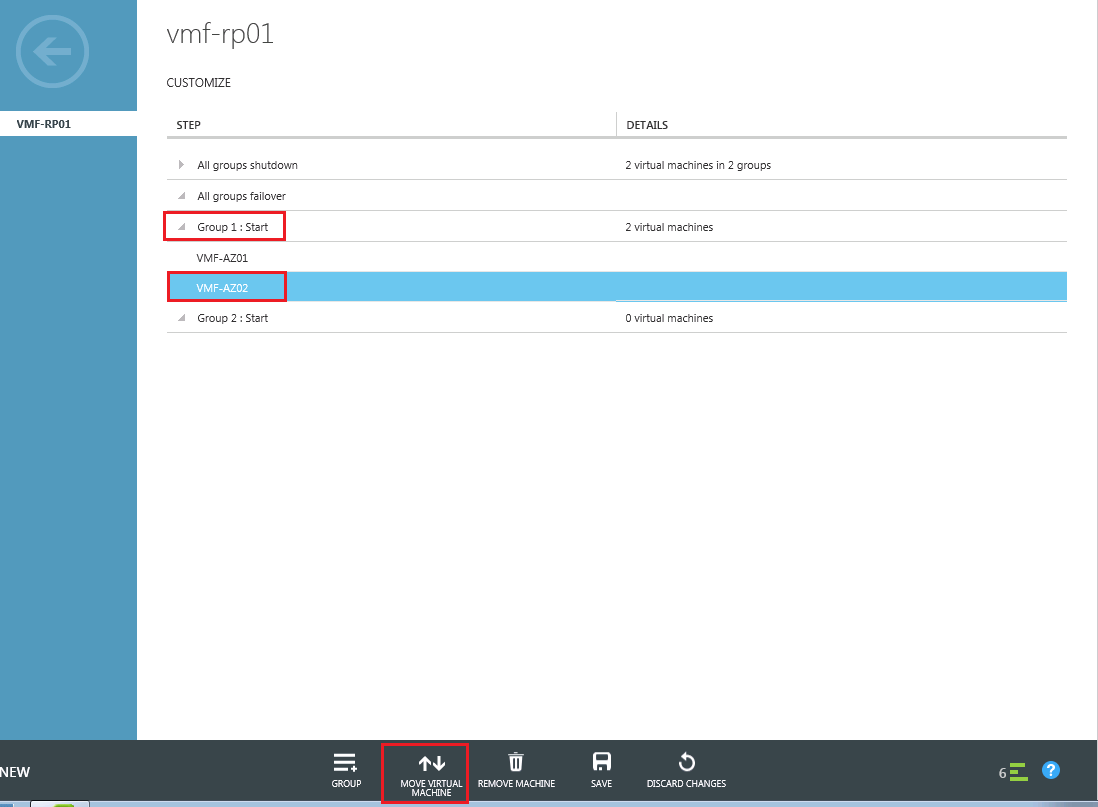

Expand Group 1 and Select VMF-AZ02 and Select Move Virtual Machine > Group 2

Azure 52

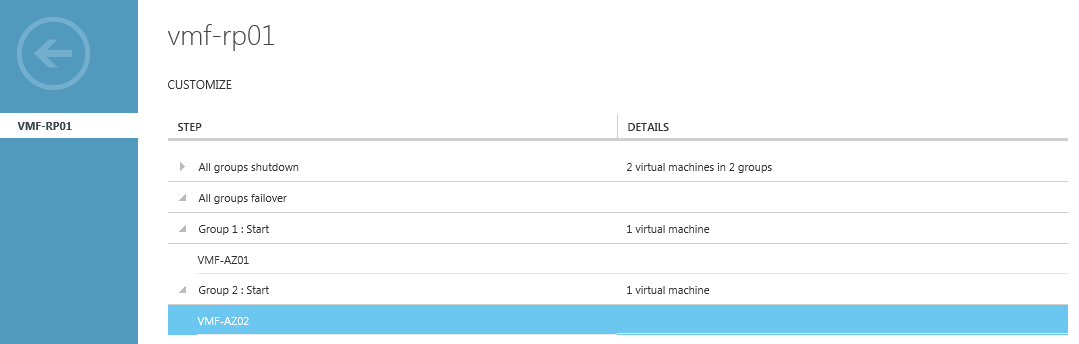

Once done it should look like this

Azure 53

Note: Don’t forget to save your changes to the Recovery Plan

Failover

Time to failover, to test things properly, I’m going to mimic an actual disaster in which our on-premises virtual machines are unable to communicate with Azure Site Recovery.  The easiest way for us to do this is to disable the virtual NICs on our on-premises Process Server, VMF-AZ01 and VMF-AZ02 in vCenter.

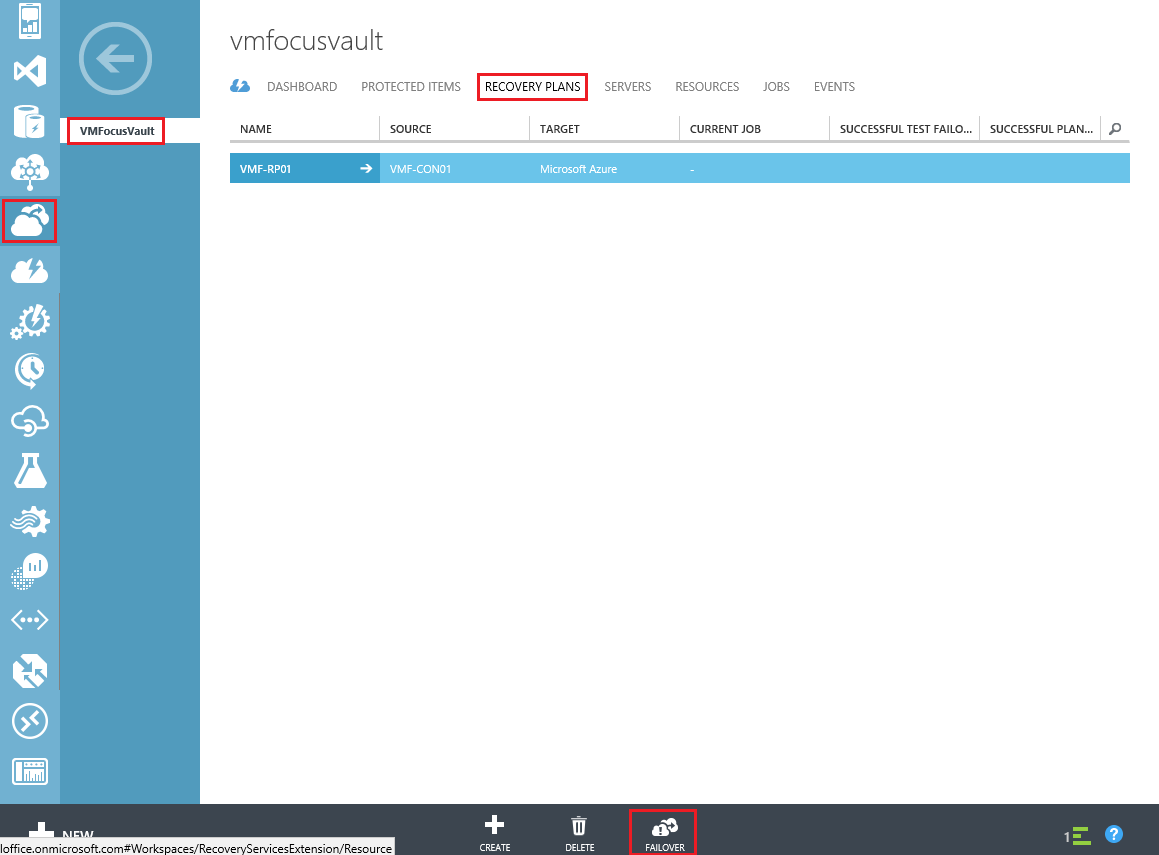

Back to the Azure Portal, Select Recovery Services > VMFocusVault> Recovery Plans > Failover

Azure 54

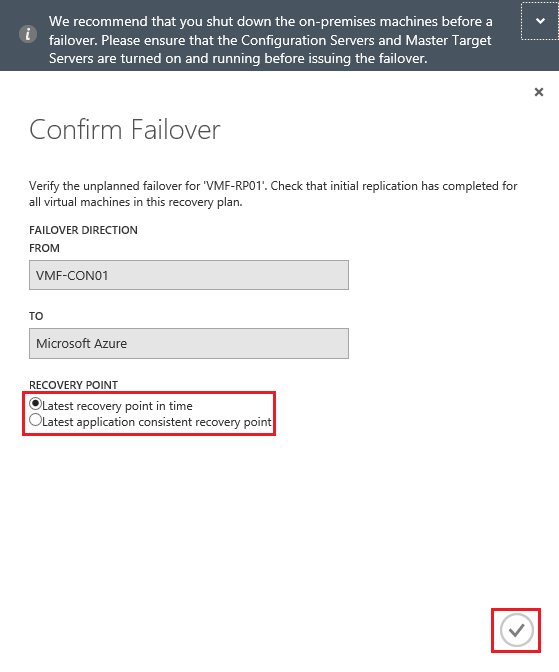

Select either Latest Recovery Point In Time or Latest Application Consistent Recovery Point

Azure 55

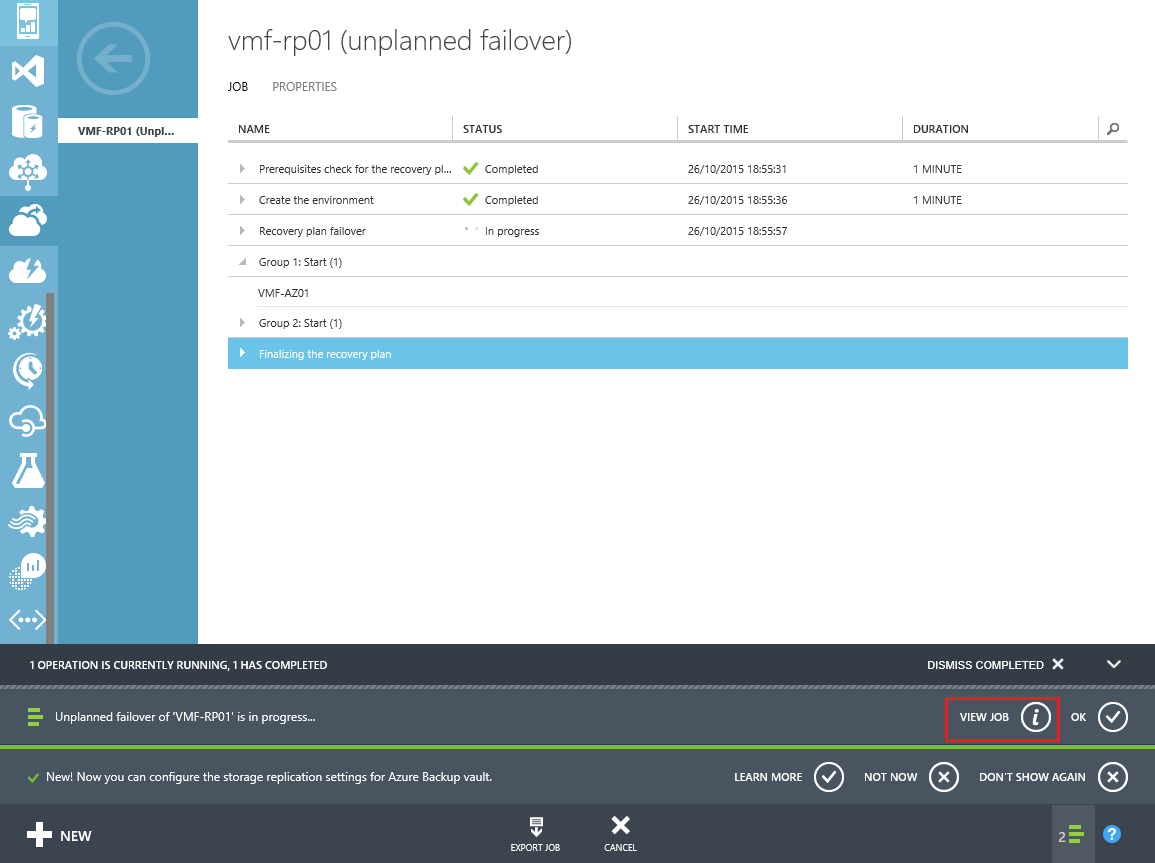

That’s it sit back and make a cup of tea whilst our Recovery Plan goes into full effect.  If however, you do want to monitor the Job, select View Job.

Azure 56

In total VMF-RP01 took 24 minutes to complete.Azure 57

We should now see two more virtual machine instances available.

Azure 58

Checking the virtual machines, I can verify the following:

  • VMF-AZ01 is on IP Address 10.3.2.74 which is our extended on-premises Layer 2 network
  • VMF-AZ02 is on IP Address 192.168.37.75 which is our routed Layer 3 network

Interestingly, EndPoints  aren’t configured for RDP and PowerShell as per a standard virtual machine deployed in Azure.  External access if required, will need to be configured manually.

Azure 58

In the next blog post, we are going to reprotect and failback to on-premises.
