Standard SSD: Azure Backup Failure

Posted on by Craig

imagesI have been undertaking a customer deployment and thought I would share this nugget of information which may save you some time.

Standard SSD

Even though Standard SSD are now GA as per this article.  We are unable to backup VMs with Standard SSD, receiving in total two error messages.

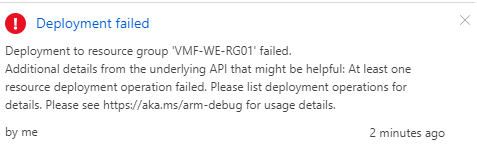

The first error message is the initial job to configure the backup fails with the message ‘Deployment to resource group ‘name’ failed.  Additional details from the underlying API that might be helpful: At least one resource deployment operation failed.  Please list deployment operations for details.  Please see https://aka.ms/arm-debug for usage details.

Azure Backup 01

Digging a bit deeper we receive the Error Code ‘UserErrorGuestAgentStatusUnavailble’ with a recommended action of ‘Ensure the VM has network connectivity and the VM agent is update and running.  For more information, please refer to https://aka.ms/guestagent-status-unavailable’.

A quick reboot of the VM and this resolves the initial ‘configure backup error’ with Standard SSDs.

We then go to protect the VM and undertake the initial backup and this is where the problem occurs.  After two plus hours, you will receive an error notification which states ‘The storage type is not supported by Azure Backup’.

Azure Backup 02

This is a known issue and is documented in the ‘Prepare Resource Manager Deployed VMs‘ article under the section ‘Limitations when backing up and restoring a VM’.

So for now, you can deploy VMs with Standard SSD but you can’t back up the entire VM using Azure IaaS VM Backup!

Update

Azure Backup now supports Standard SSD see blog post here.



Application Gateway WAF, does it Load Balance?

Posted on by Craig

images

I was recently working on a project in which we where using an Application Gateway with WAF to send traffic to certain destinations based on URL path.

During a conference call with the application developer and a Microsoft Cloud Solution Architect I was asked the question, what are you going to use to load balance the backend pools?

I initially responded the WAF as this is polling the backend pool to determine which VMs to send traffic to, so logically should include a Load Balancer, but hold on a minute I have never seen any settings for Load Balance rules.  In comes that moment of doubt when someone from Microsoft questions you.

After trawling over the documents, I was able to find reference to load balancing on the main product overview along with internal load balance configuration, but what about external connections?

I was able to find this golden nugget of information, written by David Sanchez entitled Azure Application Gateway uses the Load Balancer.  This confirms that it is a built in to the Application Gateway by default using an algorithm to provide load balance services.

So in short, yes the Application Gateway WAF, does include a Load Balancer, it is just inbuilt and therefore shielded from configuration choices.



Azure Announcements August 2018

Posted on by Craig

azure

As you would expect quite a few changes within the world of Microsoft Azure since my last update in March 2018.

So without further delay, below is my take on the heavy hitters which have been announced.

Azure Database for MySQL and PostgreSQL

Generally availability was a announced in April 2018, which essentially means that for customers using either database service are no longer running at risk and are now protected by an SLA of 99.99%

Read more here.

Integration of Azure Backup into VM Create Experience

OK, this is quite a small thing but when you have deployed oodles of VMs and you have to make sure you undertake backup configuration separately, can lead to a bit of frustrating.

Quite pleased Microsoft have introduced this as it makes for an overall better VM creation workflow.

Azure Service Health

Put simply being able to see the affect of any Azure outages on your resources rather than a generic status update is a great step forward.

Read more here.

Azure Virtual Machine Serial Console

Wondering why your VM won’t power on, or is hung without knowing the status.  Well we finally have an answer thanks to Serial Console access.

Makes the diagnosis of issues far easier and transparent.  Read more here.

Application Security Groups

This makes managing Network Security Groups at scale far easier, no longer are we reliant on IP Addresses, we can group network interfaces into Application Security Groups to govern traffic flow.

Read more here.

Security Centre Overhaul

I have to admit it, Security Centre wasn’t the most pleasant place to be.  Microsoft have taken this on-board and given the UI an overhaul.  Now it’s easier to understand, find and remediate issues within your Azure environment.

Azure Firewall

When I read into Azure Firewall, it wasn’t the big news as I was expecting, more so a v0.1 release from Microsoft.

In a nutshell, it monitors interesting outbound traffic.  So a step in the right direction, but more to come soon hopefully.

Read more here.

Azure Management Groups

For those of us that work across customers with multiple subscriptions this makes life so much easier!

Quite a simple thing, but again a great time sizer.  Read more here.

Encrypted ExpressRoute Microsoft Peering

This was announced under the radar so to speak.  We now have the ability to natively encrypt ExpressRoute Microsoft Peering traffic to access PaaS services within Azure.

So if you are a department with a requirement to use Azure PaaS securely, this will likely be the solution you are looking for.

3 x New Azure Exams with 80% Off

Posted on by Craig

azureMicrosoft have launched three new Azure exams with 80% off, aimed at Azure Administrators, focused on depth rather than breadth.

  • Taking the AZ-100 and AZ-101 will lead to the certification Microsoft Azure Administrator.
  • If you have the 70-533 already, you can take the AZ-102 to achieve the certification Microsoft Azure Administrator.

AZ-100: Microsoft Infrastructure & Deployment

Measures knowledge and experience of:

  • Azure Subscriptions and Resources
  • Implementing and Managing Storage
  • Deploy and Manage Virtual Machines
  • Configure and Manage Virtual Networks
  • Manage Identities

More information can be found here and the 80% discount code is AZ100TRAVELING

AZ-101: Microsoft Azure Integration & Security

Measures knowledge and experience of:

  • Evaluate and Perform Server Migration to Azure
  • Implement and Manage Application Services
  • Implement Advanced Virtual Networking
  • Secure Identities

More information can be found here and the 80% discount code is AZ101HIKING

AZ-102: Microsoft Azure Administrator Certification Transition

Measures knowledge and experience of:

  • Evaluate and Perform Server Migration to Azure
  • Implement and Manage Application Services
  • Implement Advanced Virtual Networking
  • Manage Identities
  • Evaluate and Perform Server Migration to Azure
  • Implement and Manage Application Services
  • Implement Advanced Virtual Networking
  • Secure Identities

More information can be found here and the 80% discount code is AZ102PLANS

App Service Environment or Web App

Posted on by Craig

I have been asked a couple of times when should you consider using an App Service Environment over a standard App Service Web App?

App Service Environment

An App Service Environment (ASE) provides an isolated and dedicated container to run a number of services such as:

  • Web Apps
  • Mobile Apps
  • Functions

An ASE does not replace an App Service Web App, it just provides a secure space for this to run.

At a high level you should consider using an ASE, if you meet one of the following conditions:

  • Access to the management plane is only available within your VNET and not from the internet
  • The Web App cannot be internet facing and therefore should be behind a Web Application Firewall
  • Communication from the Web App to PaaS DB Service should be secured within your VNET
  • Communication from the Web App to VM should be secured within your VNET

This can be logically explained in the diagram below.

Azure ASE v0.1

App Service Web App

An App Service Web App is the PaaS service which without the ASE is accessible directly from the internet.

The instances you run sit on shared compute, which may or may not be on the same physical server or rack.

At a high level, an App Service Web App can be integrated into other Azure services such as:

Final Thought

Depending on the requirements of the application and the business will determine if your App Service Web App should run on a standard PaaS tier or within an App Service Environment.

It should be noted that even though an App Service Web App running App Service Environment is considerably more expensive than a standard App Service Web App, you can run multiple App Services within the App Service Environment.
