Adding HP & Dell VIB to VUM

Posted on 1 October 201311 January 2021 by Craig

Depending on your vSphere environment, you will have probably installed your ESXi hosts using a custom ISO from your hardware manufacturer.

Then after this, usually the standard vSphere Update Manager sources are used.

VUM will update your ESXi Host with patches from VMware, however it won’t update perform driver updates to your components e.g. NIC

This is where the vSphere Infrastructure Bundles come into play. A great explanation of VIBs can be found over here by Kyle Gleed

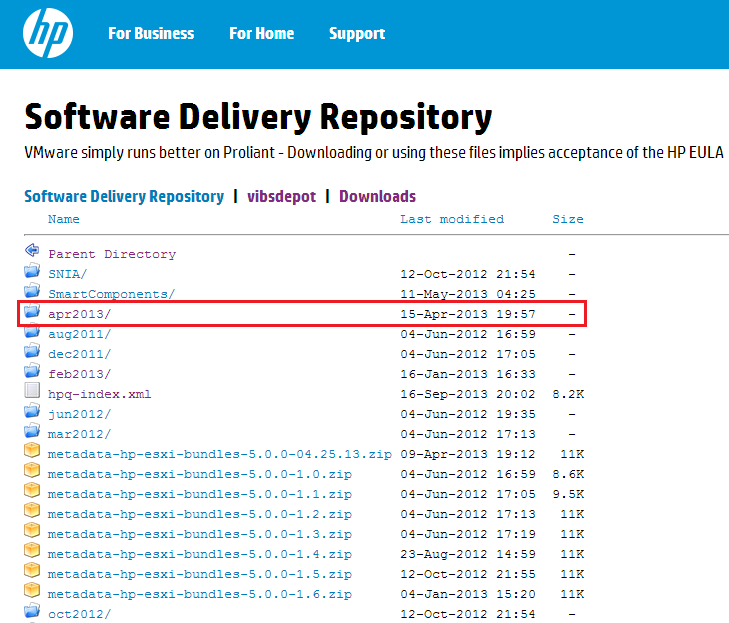

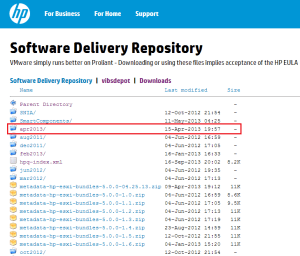

First of all browse to the HP Software Delivery Repository and locate the most recent month (this is a manual check I’m afraid). In this case it is Apr2013

Double click Apr2013 and then locate index.xml and double click on this. What you want is the URL from your browser, in this case it is

http://vibsdepot.hp.com/hpq/apr2013/index.xml

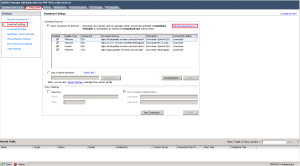

Go into vSphere Update Manager > Administration View > Configuration > Download Settings and Select Add Download Source

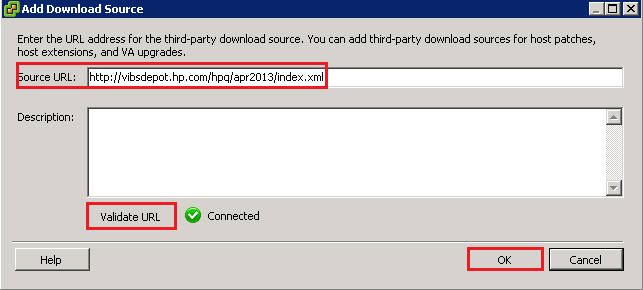

Add in http://vibsdepot.hp.com/hpq/apr2013/index.xml and Validate URL. If successful a Green Tick should appear.

The VIB won’t be live for use by VUM until you click Apply

Then click ‘Download Now’

We now need to make sure that our Baseline Groups are going to use the HP VIBs as a validation source for VUM Scans

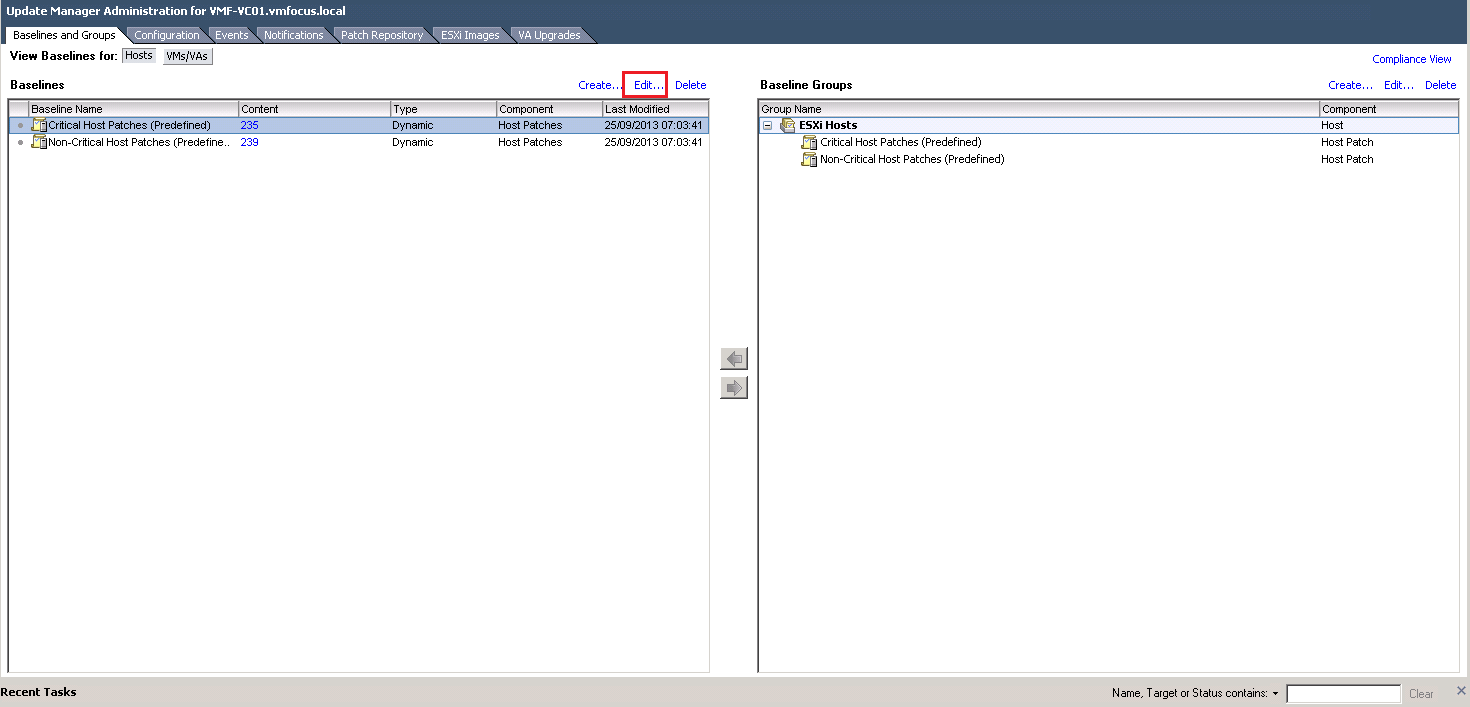

To do this go to Baselines & Groups > Edit

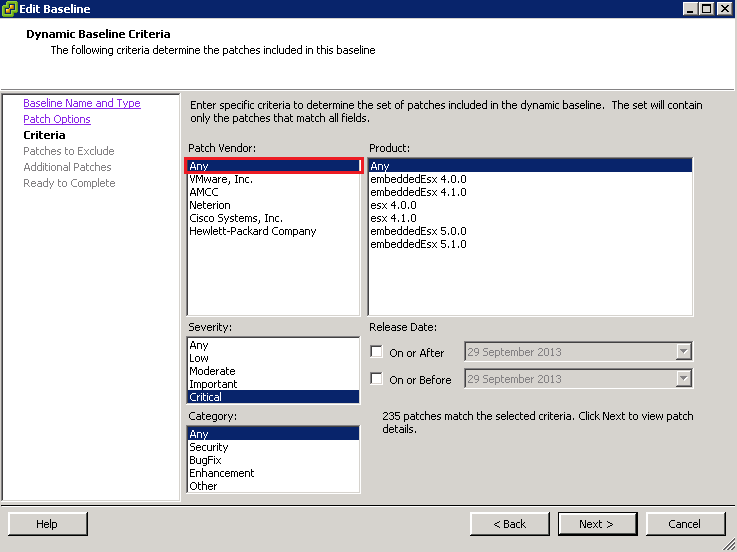

Click Next until you get to Criteria and make sure that Patch Vendor equals Any

Click Next until you get through to Finish.

Hope that helps you manage and maintain your vSphere environment.

##########

Update

Barrie Seed (@vStorage) bought to my attention via Twitter that Dell also have a VIB repository which can be linked to VUM.

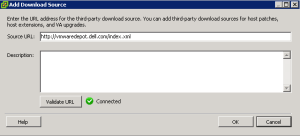

The URL is http://vmwaredepot.dell.com/index.xml which validates correctly.

3PAR StoreServ Zoning Best Practice Guide

Posted on 22 August 201311 January 2021 by Craig

This is an excellent guide which has been written by Gareth Hogarth who has recently implemented a 3PAR StoreServ and was concerned about the lack of information from HP in relation to zoning. Being a ‘stand up guy’ Gareth decided to perform a lot of research and has put together the ‘3PAR StoreServ Zoning Best Practice Guide’ below.

This article focuses on zoning best practices for the StoreServ 7400 (4 node array), but can also be applied to all StoreServ models including the StoreServ 10800 8-node monster.

3PAR StoreServ Zoning Best Practice Guide

Having worked on a few of these, I found that a single document on StoreServ zoning BP doesn’t really exist. There also appears to be conflicting arguments on whether to use Single Initiator – Multiple Target zoning or Single Initiator – Single Target zoning. The information herein can be used as a guideline for all 3PAR supported host presentation types (VMware, Windows, HPUX, Oracle Linux, Solaris etc…).

Disclaimer: Please note that this is based on my investigation, engaging with HP Storage Architects and Implementation Engineers. Several support cases were opened in order to gain a better understanding of what is & isn’t supported. HP recommendations change all the time, therefore it’s always best to speak with HP or your fabric vendor to ensure you are following latest guidelines or if you need further clarification.

Right, let’s start off with Fabric Connectivity

In terms of host connectivity options the StoreServ 7000 (specifically the 7400) provides us with the following:

4x built-in 8 Gb/s Fibre Channel ports per node pair.
Optional 8 Gb/s Quad Port Fibre Channel HBA (Host Bus Adapter) per node (we will be focusing on this configuration option).
Optional 10 Gb/s Dual Port FCOE (Fibre Channel over Ethernet) converged network adapter per node.

StoreServ target ports are identified in the following manner Node:Slot:Port.

StoreServ target ports located on the on-board HBA’s will always assume the slot identity of 1, respectively StoreServ targets ports located on the optional expansion slot will always assume the identity of slot 2.

StoreServ nodes are grouped in pairs, it’s important to pay particular attention to this when zoning host initiators (server HBA ports) to the StoreServ Target ports.

Recommendations

Each HP 3PAR StoreServ node should be connected to two fabric switches.
Ports of the same pair of nodes with the same ID (value) should be connected to the same fabric.
General rule – odd ports should be connect to fabric 1 and even ports should be connected to fabric 2.

Figure 1a below identifies physical cabling techniques, mitigating against single points of failure using a minimum of two fabric switches, which are separated from each other.

The example below illustrates StoreServ nodes with supplementary quad port HBA’s:

Moving on to Port Persistence

As already covered by Craig in this blog post, a host port would be connected and zoned on the fabric switch via one initiator (host HBA port) to one HP 3PAR StoreServ target port (one-to-one zoning). The pre-designated HP 3PAR StoreServ backup port must be connected to the same fabric as its partner node port.

It is best practice that a given host port sees a single I/O path to HP 3PAR StoreServ. As an option, a backup port can be zoned to the same host port as the primary port, which would result in the host port seeing two I/O paths to the HP 3PAR StoreServ system. This would also result in the configuration where a HP 3PAR StoreServ port can serve as the primary port for a given host port(s) and backup port for host port(s) connected to its partner node port.

Persistent ports leverage SAN fabric NPIV functionality (N_Port ID Virtualization) for transparent migration of a host’s connection, to a predefined partner port on the HP 3PAR StoreServ array during software upgrades or node failure.

One of the ways this is accomplished is by having a predefined host facing port on the 3PAR StoreServ array, so that in the event of upgrade (node shutdown) or node down status the partner port will assume the identity of its partner port. The whole process is transparent to the host. When the node returns to normal I/O is failed back to the original target port.

Although unconfirmed I have heard that in in future releases of Inform OS we will get this level of protection at the port level.

Essentially for this to work Port Persistence requires that corresponding ‘native’ and ‘guest’ StoreServ ports on a node pair, be connected to the same fibre channel fabric.

Requirements for 3PAR Port Persistence:

The same host ports on the host facing HBA’s in the nodes in a node pair must be connected to the same fabric switch.
The host facing ports must be set to target mode.
The host facing ports must be configured for point-to-point connections.
The Fibre Channel fabric must support NPIV and have NPIV enabled on the switch ports.

Checking and enabling NPIV

Brocade Fabric OS (ensure you have the appropriate license which enables NPIV)

admin> portcfgshow ‘port#’

If the NPIV capability is enabled, the results of the portcfgshow command will identify this, i.e NPIV capability ON.

If the NPIV capability is not enabled, you can turn it on with the following command:

admin> portCfgNPIVPort ‘port#’ 1 (1 = on, 0 = off)

Cisco MDS Series Switches

fabSwitch # conf t

fabSwitch(config) # feature npiv (Enables NPIV for all VSANs on the switch)

QLogic SANbox 3800, 5000 and 9000 Switches

Don’t require a license, it’s enabled by default (just ensure you are using firmware version 6.8.0.0.3 or above).

Now let’s cover Switch Zoning (Fibre Channel)

SAN zoning is used to logically group hosts and storage devices together in a physical SAN, so that authorised devices can only communicate with each other if they are in the same SAN zone.

The function of zoning is to:

Restrict access so that hosts can only see the data they are authorised to see.
Prevent RSCN (Registered State Change Notification) broadcasts.

What are ‘RSCNs’ ? RSCNs are a feature of fabric switches. It’s a service of the fabric that notifies devices of changes on the state of other attached devices. For example if a device is reset, removed or otherwise undergoes a significant change in status.

These broadcasts are made to all members in the configured SAN zone. As hosts and storage targets can be grouped in a zone its best practice to reduce the impact of these types of broadcasts (Note: an argument against RSCN’s causing issues in zoning tables is that newer HBA’s do a good job limiting the impact of these types of broadcasts). Nevertheless, I prefer limiting the number of initiators and targets in a fabric zone to a minimum.

Zoning Types

Domain, Port zoning uses switch domain id’s and port numbers to define zones.
Port World Wide Name or pWWN zoning uses port World Wide Names to define zones. Every port on a HBA has a unique pWWN. (A host HBA comprises of a – nWWN & a pWWN, the nWWN refers to the whole device whereas the pWWN refers to the individual port.

The preferred zoning unit for the 3PAR StoreServ is pWWN. If you are currently using Domain, Port migrating to pWWN is very easy. Simply create new zones based on the pWWN of the host and the pWWN of the storage target, add these new zones to your fabric switches, zoning-out the references to Domain, Port for that respective HBA port. Some fabric vendor’s support mixing both Domain, Port and pWWN in the same zone. I prefer using one or the other explicitly.

The following command outputs the StoreServ ports and partner ports, which can be used to identify the node pWWN’s for zoning.

3PAR01 cli% showport

HP 3PAR StoreServ supports the following zoning configurations:

Single initiator – Single Target per zone (recommended)
Single initiator – Multiple Targets per zone

Use Single Initiator – Single Target per zone over Single Initiator Multiple Targets per zone to reduce RSCN’s as previously discussed.

At the time of writing, HP 3PAR OS implementation documentation references Single Initiator Multiple Targets as the recommended zoning type. However, when I queried this I was directed to use Single Initiator – Single Target Zoning. HP support pointed me in the direction of this document which identifies Single Initiator – Single Target zoning as best practice: http://www8.hp.com/h20195/v2/GetDocument.aspx?docname=4AA4-4545ENW

HP will support Single Initiator – Multiple Target, but you should not have a single host initiator attached to more than two StoreServ target ports!

Host port WWN’s should be zoned in partner pairs. For example if a host is zoned to node port 0:2:1, then it should be zoned to node port 1:2:1 (I’m speculating here, but I guess this is because controller nodes mirror cache I/O, so that in the event of node failure write operations in cache are not lost – hence we zone in node pairs and not across nodes from different pairs).

After you have zoned the host pWWN to the StoreServ node pWWN, you can use the 3PAR CLI showhost command to ensure that each host initiator is zoned to the correct StoreServ target ports (ensuring initiators go to different targets over different fabrics).

Figure 1b represents a staggered approach where you would have odd numbered VMware hosts connecting to nodes 0 & 1, and even numbered hosts connecting to nodes 2 & 3 (Note: currently the StoreServ is designed to tolerate a single node failure only, this includes the 8-node StoreServ 10800 array).

The example depicts Single Initiator – Single Target zoning, so a host with two HBA ports connecting over two fabrics will have a total of four zones (two per fabric). In case you were wondering the maximum allowed is eight (also known as fan-in limitation which is four per fabric).

Here are some additional points to be aware of

Fan-in/Fan-out ratios:

Fan-in refers to a host server port connected to several HP 3PAR storage ports via Fibre Channel switch.
Fan-out refers to the HP 3PAR StoreServ storage port that is connected to more than one host HBA port via Fibre Channel switch.

Note: Fan-in over subscription represents the flow of data in terms of client initiator to StoreServ target ports. HP/3PAR documentation states that a maximum of four HP 3PAR storage system ports can fan-in to a single host server port (if you are thinking great, I’ll connect my VMware host to 8 ports [four per fabric] think again. Using this approach when you have hundreds of hosts can quickly reach the maximum StoreServ port connection limitation which is 64!) it’s just not necessary.

StoreServ Target Port Maximums (As per 3PAR InForm OS 3.1.1 please observe the following):

Maximum of 16 hosts initiators per 2Gb HP 3PAR StoreServ Storage Port
Maximum of 32 hosts initiators per 4Gb HP 3PAR StoreServ Storage Port
Maximum of 32 hosts initiators per 8Gb HP 3PAR StoreServ Storage Port
Maximum total of 1,024 host initiators per HP 3PAR StoreServ Storage System

HP documentation states that these recommendations are guidelines, adding more than the recommended hosts should only be attempted, when the total expected workload is calculated and shown not to overrun either the queue depth or throughput of the StoreServ node port.

Note: StoreServ storage ports irrespective of speed, will negotiate at the lowest speed of the supporting fabric switch (keep this in mind when calculating the number of host connections).

The following focuses on changing the target port queue depth on a VMware ESX environment.

The default setting for target port queue depth on the ESX host can be modified to ensure that the total workload of all servers will not overrun the total queue depth of the target HP StoreServ system port. The method endorsed by HP is to limit the queue depth on a per-target basis. This recommendation comes from limiting the number of outstanding commands on a target (HP 3PAR StoreServ system port), per ESX host.

The following values can be set on the HBA running VMware vSphere. These values limit the total number of outstanding commands the operating system routes to one target port:

For Emulex HBA target throttle = tgt_queue_depth
For Qlogic HBA target throttle = ql2xmaxqdepth
For Brocade HBA target throttle = bfa_lun_queue_depth

(Note: for instructions on how to change these values follow VMware KB1267‎, these values are also adjustable on Linux Redhat & Solaris).

The Formula used to calculate these values is as follows:

(3PAR port queue depth [see below]) / (total number of ESX severs attached) = recommended value

The I/O queue depth for each HP 3PAR StoreServ storage system HBA mode is shown below:

Note: The I/O queues are shared among the connected host server HBA ports on a first come first serve basis.

*HP 3PAR StoreServ Storage HBA*	*I/O queue depth values*
Qlogic 2Gb	497
LSI 2Gb	510
Emulex 4Gb	959
HP 3PAR HBA 4Gb	1638
HP 3PAR HBA 8Gb	3276

Well, hopefully you found the above information useful. Here is a high level summary of what we have discussed:

Identify and enable NPIV on your fabric switches (Fibre Channel only feature – NPIV-Port Persistence is not present in iSCSI environments)
Use Single Initiator -> Single Target zoning (HP will support Single Initiator – Multiple Target, but you should not have a single host initiator attached to more than two StoreServ target ports).
A maximum of four HP 3PAR Storage System ports can fan-in to a single host server port.
Zoning should be done using pWWN. You should not use switch port/Domain ID or nWWN.
A host (non-hypervisors) should be zoned with a minimum of two ports from the two nodes of the same pair. In addition, the ports from a host zoning should be mirrored across nodes.
Hosts need to be zoned to node pairs. For example, zoned to nodes 0 and 1 or to nodes 2 and 3. Hosts should NOT be zoned to non-mirrored nodes such as 0 and 3.
When using hypervisors, avoid connecting more than 16 initiators per 4 Gb/s port or more than 32 initiators per 8 Gb/s port.
Each HP 3PAR StoreServ system has a maximum number of initiators supported, that depends on the model and configuration.
A single HBA zoned with two FC ports will be counted as two initiators. A host with two HBA’s, each zoned with two ports, will count as four initiators.
In order to keep the number of initiators below the maximum supported value, use the following recommendations:
- Hypervisors: four paths maximum.
- Other hosts (non-hypervisors): two paths to two different nodes of the same port pairs.
Hypervisors can be zoned to four different nodes but the hypervisor HBAs must be zoned to the same Host Port on HBAs in the nodes for each Node Pair.

Reference Documents

HP SAN Design Reference Zoning Recommendations

HP 3PAR InForm® OS 3.1.1 Concepts Guide

The HP 3PAR Architecture

HP UX 3PAR Implementation Guide

HP 3PAR Red Hat Enterprise Linux and Oracle Linux Implementation Guide

HP 3PAR VMware ESX Implementation Guide

HP 3PAR StoreServ Storage and VMware vSphere 5 best practices

HP 3PAR Windows Server 2012, Server 2008 Implementation Guide

HP Brocade Secure Zoning Best Practises

HP 3PAR Peer Persistence Whitepaper

An introduction to HP 3PAR StoreServ for the EVA Administrator

Building SANs with Brocade Fabric Switches by Syngress

Whats New? StoreVirtual VSA – LeftHand OS 11.0

Posted on 16 August 201311 January 2021 by Craig

It’s no secret that I’m a fan of the StoreVirtual, which you can see by the number of blog posts I have made about the subject.

HP have announced the next iteration of LeftHand OS, which is version 11.0, this has a number of enhancements which are covered by Kate Davis (@KateAtHP). These include:

Smarter updates with Online Upgrade enhancements to identify updates per management group, plus you can choose to only download newer versions, hooray!
Faster performance for command-line interface improves response times for provisioning and decommissioning of storage, and retrieving info about managements groups, volumes and clusters
Increased IO performance on VMware vSphere with support for ParaVirtualized SCSI Controller (PV SCSI) which provides more efficient CPU utilization on the host server
More control over application-managed snapshots for VMware and Microsoft administrators with quicker and simpler install and configuration process
Optimization of snapshot management to minimize the burden on the cluster when handling high-frequency snapshot schedules with long retention periods
Fibre Channel support for HP StoreVirtual Recovery Manager for servers with FC connectivity to StoreVirtual clusters can be used to recover files and folders from snapshots.
LeftHand OS 11.0 will be certified with at least one 10Gbe cards for use with StoreVirtual VSA on launch.

What I’m most excited about is the new Adaptive Optimization feature which is introduced in LeftHand OS 11.0 . Last night Calvin Zito (@HPStorageGuy) hosted a live podcast covering AO in more depth. So without further a due:

Adaptive Optimization will be completely automated, with a simple on or off.
Adaptive Optimization will work automatically e.g. no schedule
Adaptive Optimization will use a ‘heat tier’ map to work out the hot areas and check the IO and CPU levels, if these are high then AO will not move the blocks, it will wait until IO and CPU levels have dropped and then perform the region moves.
Adaptive Optimization will allow for support of two storage tiers and works at node level.
Adaptive Optimization will use a chunk size of 256K for region moves.
Adaptive Optimization will work on ‘thick’and ‘thin’ volumes
Adaptive Optimization will work on all snapshots of a given volume.
Adaptive Optimization will be included for free for anyone who has a StoreVirtual VSA 10TB license already.
Adaptive Optimization will not be included for the new 4TB StoreVirtual VSA license
Adaptive Optimization will work with PCIe Flash, SSD, SAS and SATA drives.

During the podcast I asked a number of questions, one of which is the potential to use HP StoreVirtual VSA with HP IO Accelerator cards, with C7000 blades and local storage for VDI deployments. The StoreVirtual representative (who was at LeftHand networks before HP acquired them) mentioned this is the one of the primary use cases for AO and they are going to be performing some benchmarks.

The StoreVirtual representative was also able to field a number of other questions for the StoreVirtual road map which are:

T10 UNMAP will be coming, just not in LeftHand OS 11.0
Changes to LeftHand OS will be made to make manual adjustments to gateway connections for vSphere Metro Storage Clusters see this blogpost.
Adaptive Optimization is likely to be coming to the physical StoreVirtual.

We also spoke about performance, the StoreVirtual representative explained about all the lab tests they had performaned and to get StoreVirtual working at it’s correct capacity you should try and keep the number of nodes per management group to 32 and have a maximum of 16 clusters.

3PAR StoreServ 7000 Software – Part 7

Posted on 15 April 201311 January 2021 by Craig

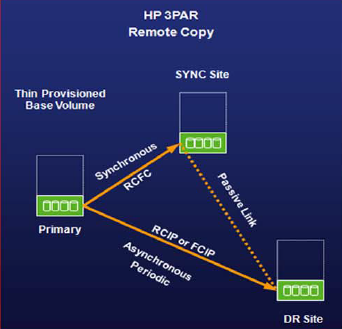

Remote Copy is the term 3PAR StoreServ uses for replicating Virtual Volumes either synchronously or ‘a synchronously’. The last time I spoke to HP, they mentioned that the highest supported latency for synchronous replication RTT was <1.7ms.

I have been fortunate enough to have configured a number of 3PAR’s with VMware’s Site Recovery Manager and setting up and configuring the Storage Replication Adapter (SRA) was a breeze. The only downside was that when you performed a test failover it always failed until you changed the Advanced VMFS3 setting to

VMFS3.HardwareAcceleratedLocking 0

One of the things I disliked about Remote Copy was the fact that if you couldn’t have ‘synch’ and ‘a synch’ Remote Copy Groups. The great news is this has now been changed and with 3PAR OS 3.1.2 we can have booth, hoorah!

However, something which I don’t really understand is that HP only support a two node system (which is a common deployment) using both Remote Copy Fiber Channel and Remote Copy IP for ‘synch’ and ‘a synch’ Remote Copy Groups. Not sure how many people have both fiber and ethernet presented from intersite links?

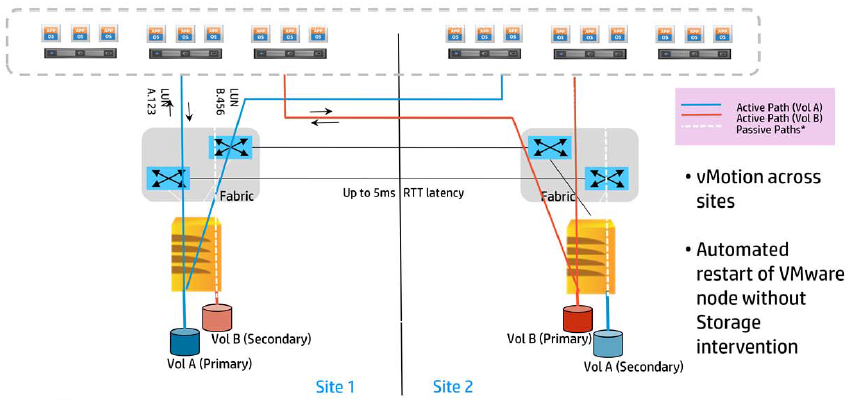

3PAR StoreServ 7000 now supports vSphere Metro Storage Cluster using Peer Persistence (later in this blog post), it mentions that up to 5ms RTT is supported, however I’m pretty sure that the user experience would be somewhat dire to say the least, can you imagine waiting for the acknowledgement on the remote array?

You can vMotion between sites, however a few things to consider when doing this:

Think of the intersite link (ISL) usage, would enough bandwidth be available to continue synch replication?
If a VM’s datastore is at the other end of the ISL then you are using very ineffective routing
Should always be used with Enterprise Plus licenses so you can instigate should Storage DRS rules to ensure that VM’s should always use the datastores they are in the same site as.

From a 3PAR StoreServ perspective the Virtual Volume is exported with the same WWN to both arrays in Read/Write mode, however only the Primary copy is marked as Active, the Secondary copy is marked as Passive.

At the time of writing this post, the failover is manual, as a quorum holder has not been created yet. I’m sure it won’t be long and 3PAR will have something like the Failover Manager (FOM) that StoreVirtual uses.

A few of other points to know about Remote Copy are:

Supports up to eight FC or IP links between 3PAR StoreServs

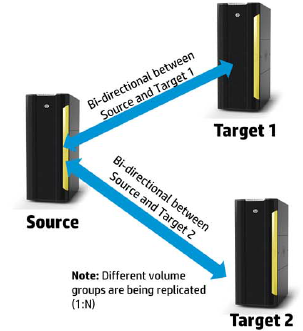

Supports replication from one StoreServ to two StoreServ for added redundancy

My overall experience with Remote Copy in Inform OS 3.1.1 has been that of frustration, a lot of the work has to be done via the CLI as the GUI has a nasty habit of not sending the correct commands or for some reason Remote Copy Links not establishing. A few of the commands that I have used on a regular basis are:

showport -rcip

showport -state

showrcopy links

stoprcopy
startrcopy

dismissrcopylink <3PARName> 2:6:1:<targetIP> 3:6:1:<targetIP>
admitrcopylink <3PARName> 2:6:1:<targetIP> 3:6:1:<targetIP>
controlport rcip addr <targetIP> 255.255.255.0 2:6:1
controlport rcip addr <targetIP> 255.255.255.0 3:6:1
controlport rcip gw <gatewayIP> 2:6:1
controlport rcip gw <gatewayIP> 3:6:1

controlport rcip speed 100 full 2:6:1

controlport rcip speed 100 full 3:6:1

One of the things I think is a great feature of Remote Copy on 3.1.2 is Remote Copy Data Verficiation, which allows you to compare your read/write (Primary) volume and your read (Secondary) volume. To implement this you run the ‘checkrcopyvv’ command which creates a snapshot of the read/write (Primary) volume and then cmopares it to the read (Secondary) volume. If inconsistencies are found then only the required blocks are copied across.

Note that only one checkrcopyvv can be run at a time.

With 3PAR OS 3.1.1. you have always been able to perform bi-directional remote copy, however now it is supported!

I know everyone likes there configuration maximums, so just to let you know the limits are:

Synchronous Remote Copy – 800 Volumes
Asynchronous Remote Copy – 2400 Volumes

Peer Persistance

I mentioned above that Peer Persistence has been included to allow support for vSphere Metro Storage Cluster so how does it work?

Asymmetric Logical Unit Access (ALUA) is used to define the target port groups for both primary and secondary 3PAR StoreServ.
The Remote Copy volumes are created on both arrays and exported to the hosts at both sites using the same WWN’s in Read/Write mode, however only one site has active I/O, the other site is passive.
When you switch over, the primary volumes are blocked and any ‘in flight’ I/O is trained and the group is stopped and failed over.
Target port groups on the primary site become passive and the secondary site become active.
The blocked IO on the primary volumes becomes unblocked and a sense error is created indicating a change of target port group to the secondary volumes
Remote Copy Group is updated and the restarted replicating in the other direction.

To move across your would use the command setrcopygroup switchover <group> to change the passive to active without impacting any I/O.

There are a few risks with Peer Persistence firstly it shouldn’t be used with a large number of virtual volumes (no exact numbers from HP yet). The reason for this is the switch over could take more than 30 seconds as a snapshot is taken at both the primary and secondary site just in case the operation fails e.g. ISL goes down. Worst case scenario you would need to promote a volume manually.

3PAR StoreServ 7000 Software – Part 6

Posted on 5 April 201311 January 2021 by Craig

So you have got an awesome new 3PAR StoreServ 7400 and its all hooked up. How do you get the data from your old array onto the 3PAR StoreServ? Well if you have vSphere no problem you could use Storage vMotion or if you are performing a data migration good old robocopy would do the trick.

However in some situations you don’t have the luxury of either of these, you just need to get the data from your old SAN to your new SAN. This is where Peer Motion comes in strutting it’s stuff.

Peer Motion

Peer Motion allows non disruptive data migration from either 3PAR to 3PAR or selected EVA to 3PAR. Essentially the destination SAN (3PAR StoreServ) connects to the source SAN as a peer and imports the data while the source SAN I/O continue.

The good news is that with each new 3PAR StoreServ you get a 180 day license for Peer Motion for free!

So how does it work?

Step 1 – 3PAR StoreServ is connected as a Peer to the Host via FC

Step 2 – 3PAR StoreServ is connected to the Host and the Virtual Volumes using admitvv

Step 3 – Old SAN is removed and the Virtual Volume is imported into the 3PAR StoreServ

Step 4 – Host links to the old SAN are removed

EVA Management & Configuration

I think all of us have known that the EVA has been slowly dieing, so below is a quick overview of how the software maps across.

Array Management
HP P6000 Command View Software = HP 3PAR Management Console (MC)
HP Storage System Scripting Utility (SSSU) = HP 3PAR 3PAR OS CLI

Performance Management
HP P6000 Performance Advisor Software = HP 3PAR MC (Real time)
HP P6000 Performance Advisor Software = HP 3PAR System Reporter (History)
HP Performance Data Collector (EVAPerf) = HP 3PAR System Reporter
HP EVAPerf = HP 3PAR 3PAR OS CLI

Replication Management
HP Replication Solutions Manager (RSM) = 3PAR MC /CLI
HP RSM =Recovery Manager (SQL/Exchage/Oracle/vSphere)

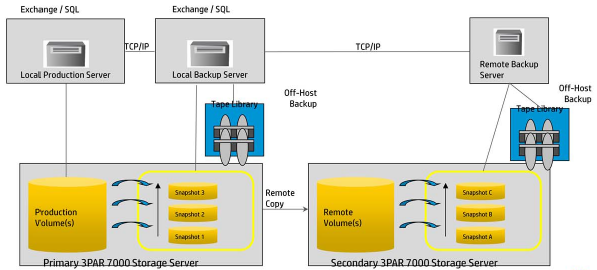

Recovery Manager

To be honest I haven’t ever used HP Recovery Manager and I can’t forsee a time when I will. However for the purpose of the HP – ASE, I need to understand what it is and does.

Recovery Manager creates application consistent copies of Exchange and SQL using Microsoft VSS, it also works with Oracle, VMware, Remote Copy, Data Protector and NetBackup.
